24VDC 41.7A MEANWELL SMPS Power Supply

Product Details:

Output Current 41.7A
Features Complies with RoHS BIS Certified
Current Range 41.7A
Cooling Method Fan Cooling
Operating Temperature -20C to +70C
Application Industrial
Connector Type Terminal Block
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

24VDC 41.7A MEANWELL SMPS Power Supply Product Specifications

Working Temperature -20C to +70C
Weight 3.3 kg
Output Type DC
Efficiency High Efficiency (Exact efficiency percentage not provided)
Material Metal casing
Output Current 41.7A
Voltage Protection Over Voltage Over Current Short Circuit Protection
Output Frequency 50/60 Hz
Features Complies with RoHS BIS Certified
Output Power 1000W
Operating Temperature -20C to +70C
Current Range 41.7A
Cooling Method Fan Cooling
Product Type Power Supply Unit
Application Industrial
Phase Single Phase
Power Supply MEANWELL SMPS
Line Regulation Low (Specific value not provided)
Connector Type Terminal Block
Storage Temperature -40C to +85C
Input Voltage 100-240 VAC
Noise Level Low (Specific value not provided)
Power Factor Corrected (Exact value not provided)
Rated Current 41.7A
Rated Power 1000W

Product Description

Brand Name	Meanwell
Part No	SE-1000-24
Input Voltage Range	90 - 132VAC / 180 - 264VAC OR 254 - 370VDC
Output Voltage	24 VDC
Output Adjustable Voltage Range	22VDC - 27.5VDC
Output Current	41.7Amp
Output Power	1000 Watt
Mounting Type	Enclosed / Panel Mount
Protections	Short Circuit / Overload / Over Voltage / Over Temperature
Efficiency	88%
Certifications	UL62368-1, BSMI CNS14336-1, EAC TP TC 004 approved; Design refer to BS EN/EN62368-1
Dimension	278 x 127 x 63.5 mm
Weight	2.5 KG

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Meanwell SMPS' category

48VDC 3.3A MEANWELL SMPS Power Supply Phase : Other, Singlephase Application : Power Supply for industrial and commercial use Power Supply : 48VDC Operating Temperature : Wide operating temperature range (specific range not provided) Output Power : 150 Watt Product Type : Switching Mode Power Supply Current Range : 3.3A Cooling Method : Natural air convection Rated Current : 3.3A Noise Level : Low noise generation (specific value not provided) Input Voltage : Multiple input ranges (specific range not provided) Rated Power : 150 Watt Line Regulation : Stable Line Regulation (specific percentage not provided) Material : Aluminum Mesh Enclosure Efficiency : High efficiency (specific value not provided) Working Temperature : Wide working temperature range (specific range not provided) Output Type : DC Voltage Protection : Over voltage protection Features : BIS certified RoHS compliant CE marked compact design Output Frequency : 50/60Hz Output Current : 3.3A Storage Temperature : Adequate storage temperature range (specific range not provided) Connector Type : Screw Terminal Weight : Lightweight design (specific weight not provided) Power Factor : High power factor (specific value not provided)

Send Inquiry

48VDC 20A MEANWELL SMPS Power Supply Phase : Single Phase Application : Industrial Automation Power Supply : 48VDC 20A MEANWELL SMPS Operating Temperature : 20C to +60C Output Power : 1000W Product Type : Switching Mode Power Supply Current Range : 020.8A Cooling Method : Builtin Fan Rated Current : 20.8A Noise Level : Low Noise Input Voltage : 90264VAC Rated Power : 1000W Line Regulation : <0.5% Material : Aluminum Casing Efficiency : High Efficiency >92% Working Temperature : 20C to +60C Output Type : DC Voltage Protection : Over Voltage Protection Features : Protection for Overload Over Voltage Short Circuit Output Frequency : 50/60Hz Output Current : 20.8A Storage Temperature : 40C to +85C Connector Type : Standard Terminal Block Weight : Approx. 2.5kg Power Factor : 0.95

Send Inquiry

48VDC 2.3A MEANWELL SMPS Power Supply Phase : Single Phase Application : Industrial Equipment Automation Systems Power Supply : Switch Mode Power Supply (SMPS) Operating Temperature : 25C to +70C Output Power : 100W Product Type : 48VDC 2.3A MEANWELL SMPS Power Supply Current Range : 2.3A Cooling Method : Convection Cooling Rated Current : 2.3A Noise Level : Low Noise Input Voltage : 85 ~ 264VAC 120 ~ 370VDC Rated Power : 100W Line Regulation : 1% Material : Metal Enclosure Efficiency : High Efficiency (~90%) Working Temperature : 25C to +70C Output Type : Other, DC Output Voltage Protection : Over Voltage Under Voltage Protection Features : Compact Design Overload Protection Overvoltage Protection Short Circuit Protection Output Frequency : 5060Hz Output Current : 2.3A Storage Temperature : 40C to +85C Connector Type : Screw Terminal Weight : 0.5kg Power Factor : Compliance with PFC standard

Send Inquiry

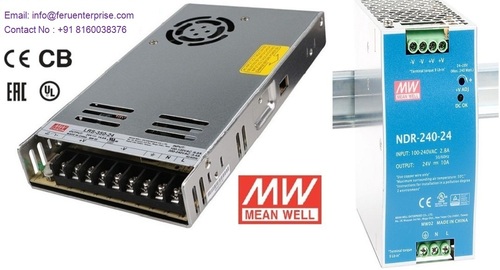

24VDC 10A MEANWELL SMPS Power Supply Phase : Other, Singlephase Application : General industrial applications LED lighting telecommunications Power Supply : Switched Mode Power Supply (SMPS) Operating Temperature : 10C to +60C Output Power : 240W Product Type : 24VDC 10A MEANWELL SMPS Power Supply Current Range : 10A Cooling Method : Fan cooling Rated Current : 10A Noise Level : Low noise operation Input Voltage : 180264VAC or 254370VDC Rated Power : 240W Line Regulation : +/ 0.5% Material : Metal enclosure Efficiency : Up to 89% Working Temperature : 10C to +60C Output Type : DC Voltage Protection : Overvoltage short circuit protection Features : Compact design high reliability overcurrent protection short circuit protection Output Current : 10A Storage Temperature : 20C to +85C Connector Type : Screw terminal Weight : 0.91 kg Power Factor : High power factor correction
