TDR-240-48 MEANWELL SMPS Power Supply
TDR-240-48 MEANWELL SMPS Power Supply
images Send Inquiry
Request To Call Back

TDR-240-48 MEANWELL SMPS Power Supply

Get a Price/Quote

TDR-240-48 MEANWELL SMPS Power Supply Specification

  • Cooling Method
  • Convection Cooling
  • Power Factor
  • High
  • Power Supply
  • TDR-240-48 MEANWELL SMPS Power Supply
  • Noise Level
  • Low
  • Rated Power
  • 240 Watt
  • Working Temperature
  • -25C to +70C
  • Features
  • Compact size certified RoHS and CE compliance
  • Output Type
  • DC Output
  • Phase
  • Single Phase
  • Connector Type
  • Screw Terminal
  • Current Range
  • 5 Amp
  • Output Current
  • 5 Amp
  • Application
  • Industrial Power Supply
  • Operating Temperature
  • -25C to +70C
  • Rated Current
  • 5 Amp
  • Product Type
  • Switch Mode Power Supply (SMPS)
  • Output Power
  • 240 Watt
  • Output Frequency
  • 50/60 Hz
  • Input Voltage
  • AC Input (e.g. 90~264V AC details not visible in image)
  • Voltage Protection
  • Over Voltage Protection Over Current Protection
  • Efficiency
  • High
  • Material
  • Metal Enclosure
  • Line Regulation
  • Stable output under varying input
  • Storage Temperature
  • -40C to +85C
  • Weight
  • 800g (approx. not listed in the image)



About TDR-240-48 MEANWELL SMPS Power Supply

Brand Name

Meanwell

Part No

TDR-240-48

Input Voltage Range

THREE-PHASE 340-550VAC OR 480-780VDC

Output Voltage

48VDC

Output Adjustable Voltage Range

48VDC -55VDC

Output Current

5Amp

Output Power

240 Watt

Mounting Type

Din Rail / Channel Mount

Protections

Short Circuit / Overload / Over Voltage / Over Temperature

Efficiency

92%

Certifications

UL61010-1, UL61010-2-201, BS EN/EN61558-1, BS EN/EN61558-2-16, AS/NZS 62368.1, EAC TP TC 004 approved

Dimension

63 x 125.2 x 113.5 mm

Weight

1 KG
TDR-240-48 MEANWELL SMPS Power Supply
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in TDR-240 MEANWELL SMPS Power Supply Category

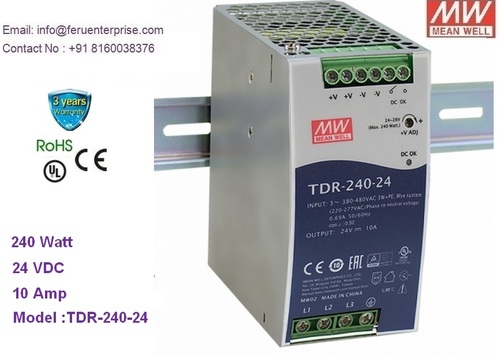

TDR-240-24 Meanwell SMPS Power Supply

TDR-240-24 Meanwell SMPS Power Supply

Price 6850 INR / Piece

Minimum Order Quantity : 1 , , Piece

Storage Temperature : 40 to +85 Celsius (oC)

Output Power : 240 Watt (w)

Phase : Three Phase

Output Current : 10 Ampere (amp)

Get a Price/Quote
