Send InquiryRT-125B MEANWELL SMPS Power Supply
RT-125B MEANWELL SMPS Power Supply Specification
- Output Type
- Triple
- Output Current
- 12 / 5 / 1 Ampere (amp)
- Phase
- Single Phase
- Output Power
- 125 Ampere (amp)
- Input Voltage
- 88 - 264VAC / 125 - 373VDC Volt (V)
- Efficiency
- 78%
- Weight
- 0.7 Kilograms (kg)
About RT-125B MEANWELL SMPS Power Supply
|
Brand Name |
MEANWELL |
|
Part No |
RT-125B |
|
Input Voltage Range |
88 - 264VAC / 125 - 373VDC |
|
Output Voltage |
5VDC / 12VDC / -12VDC |
|
Output Current |
12Amp / 5Amp / 1Amp |
|
Output Power |
125Watt |
|
Mounting Type |
Enclosed / Panel Mount |
|
Protections |
Output Short Circuit / Over-Current / Over-Voltage |
|
Efficiency |
78% |
|
Certifications |
UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved |
|
Dimension |
199 x 98 x 38 mm |
|
Weight |
0.7 KG |
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in RT-125 MEANWELL SMPS Power Supply Category
RT-125D MEANWELL SMPS Power Supply
Output Power : 125 Watt (w)
Output Type : Triple
Phase : Single Phase
Weight : 0.7 Kilograms (kg)
Output Current : 8 / 3 / 2 Ampere (amp)
Efficiency : 80%

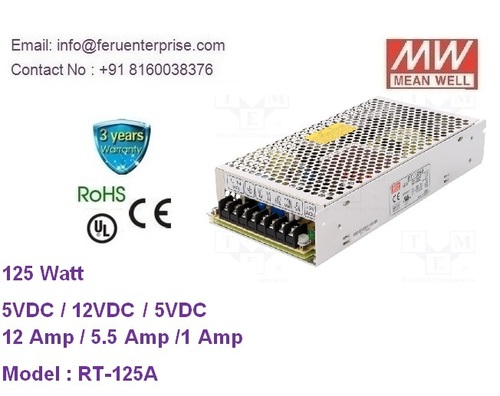

RT-125A MEANWELL SMPS Power Supply
Output Power : 125 Watt (w)
Output Type : Triple
Phase : Single Phase
Weight : 0.7 Kilograms (kg)
Output Current : 12 / 5.5 / 1 Ampere (amp)
Efficiency : 77%

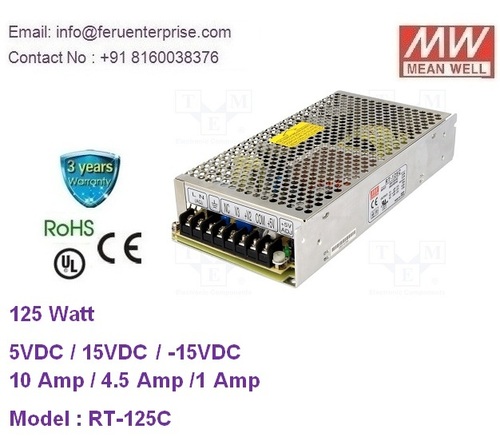

RT-125C MEANWELL SMPS Power Supply
Output Power : 125 Watt (w)
Output Type : Triple
Phase : Single Phase
Weight : 0.7 Kilograms (kg)
Output Current : 10 / 4.5 / 1 Ampere (amp)
Efficiency : 79%
