LM50-23B05 MORNSUN SMPS Power Supply

Product Details:

Phase Single Phase
Working Temperature Industrial temperature range
Current Range 10 Amp
Rated Power 50 Watt
Cooling Method Natural air cooling
Noise Level Low noise
Application SMPS Power Supply
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

LM50-23B05 MORNSUN SMPS Power Supply Product Specifications

Output Power 50 Watt
Phase Single Phase
Working Temperature Industrial temperature range
Storage Temperature Extended industrial range
Efficiency High efficiency
Cooling Method Natural air cooling
Material Metal enclosure
Current Range 10 Amp
Product Type SMPS Power Supply
Rated Power 50 Watt
Features RoHS BIS CE certified; 3-year warranty
Output Current 10 Amp
Voltage Protection Over-voltage overload protections
Rated Current 10 Amp
Power Supply 5 VDC Output
Noise Level Low noise
Application SMPS Power Supply
Connector Type Screw terminals
Input Voltage AC input range
Line Regulation Stable
Output Frequency 50/60 Hz
Output Type DC output
Operating Temperature Standard industrial range
Weight Lightweight

Product Description

Brand Name	Mornsun
Part No	LM50-23B05
Input Voltage Range	85 - 305VAC / 120 - 430VDC
Output Voltage	5VDC
Output Adjustable Voltage Range	4.5VDC - 5.5VDC
Output Current	10Amp
Output Power	50 Watt
Mounting Type	Enclosed / Panel Mount
Protections	Output Short Circuit / Over-Current / Over-Voltage
Efficiency	83% At 230VAC
Certifications	UL / CE / CCC / BIS
Dimension	99 x 82 x 30 mm
Weight	0.190 KG

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'LM50-23B MORNSUN SMPS Power Supply' category

LM50-23B15 MORNSUN SMPS Power Supply Operating Temperature : 40C to 85C Output Type : DC output, Other Line Regulation : Low line regulation Weight : Lightweight design Power Supply : Switch mode power supply (SMPS) Rated Current : 3.4 Amp Voltage Protection : Overvoltage protection Output Current : 3.4 Amp Features : Compact size Reliable performance BIS certified Noise Level : Low noise Connector Type : Screw terminal Input Voltage : Universal input voltage (AC/DC) Application : Industrial electronics Automation systems Cooling Method : Air cooling Rated Power : 50 Watt Product Type : Power supply module Current Range : 3.4 Amp Material : Aluminum casing Working Temperature : 40C to 85C Output Power : 50 Watt Phase : Singlephase, Other Efficiency : High efficiency (RoHS compliant CE marked) Output Frequency : 50/60 Hz Power Factor : Improved power factor Storage Temperature : 55C to 125C

Send Inquiry

LM50-23B48 MORNSUN SMPS Power Supply Operating Temperature : 25C to +70C Output Type : Other, DC Output Line Regulation : Stable Output Voltage Under Load Changes Weight : Approx. 200g Power Supply : Switch Mode Power Supply (SMPS) Rated Current : 1.1 Amp Voltage Protection : Over Voltage and Short Circuit Protection Output Current : 1.1 Amp Features : RoHS BIS CE Certified; Compact Design; Reliable Performance Noise Level : Low Noise Operation Connector Type : Terminal Block Input Voltage : 48 VDC Application : Power Supply for Industrial and Communication Equipment Cooling Method : Convection Cooling Rated Power : 50 Watt Product Type : Power Supply Unit Current Range : 1.1 Amp Material : Aluminum Casing Working Temperature : 25C to +70C Output Power : 50 Watt Phase : Single Phase Efficiency : High Efficiency Output Frequency : 5060 Hz Power Factor : Optimized Power Factor Storage Temperature : 40C to +85C

Send Inquiry

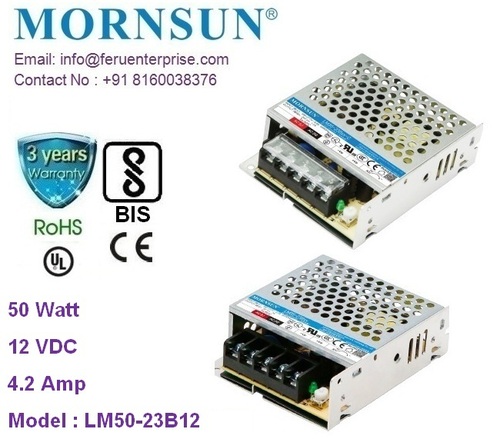

LM50-23B12 MORNSUN SMPS Power Supply Operating Temperature : Standard range Output Type : Other, Single output Line Regulation : Low line regulation Weight : Lightweight design Power Supply : Switchmode power supply (SMPS) Rated Current : 4.2 Amp Voltage Protection : Overvoltage protection Output Current : 4.2 Amp Features : Compact design RoHS compliant BIS certified Noise Level : Minimal electrical noise Connector Type : Screw terminals Input Voltage : AC Application : Generalpurpose power supply Cooling Method : Natural air cooling Rated Power : 50 Watt Product Type : Power Supply Unit Current Range : 4.2 Amp Material : Metal enclosure Working Temperature : Standard range Output Power : 50 Watt Phase : Single Phase Efficiency : High efficiency (RoHS compliant) Output Frequency : 50/60 Hz Power Factor : Standard power factor Storage Temperature : Standard range

Send Inquiry

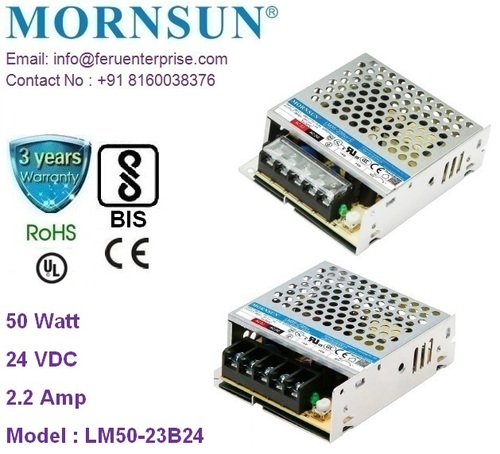

LM50-23B24 MORNSUN SMPS Power Supply Operating Temperature : 25C to 70C Output Type : DC Line Regulation : Stable Line Regulation Weight : Lightweight Power Supply : AC to DC Power Supply Rated Current : 2.2 Amp Voltage Protection : Over Voltage Protection Output Current : 2.2 Amp Features : Compact design RoHS & BIS certified Reliable performance Noise Level : Low Noise Connector Type : Screw Terminal Input Voltage : Variable Input Voltage Application : Power Supply for Electronic Devices Cooling Method : Natural Air Cooling Rated Power : 50 Watt Product Type : Switch Mode Power Supply Current Range : 2.2 Amp Material : Metal Enclosure Working Temperature : 25C to 70C Output Power : 50 Watt Phase : Single Phase Efficiency : High Efficiency Output Frequency : 50/60 Hz Power Factor : Good Power Factor Storage Temperature : 40C to 85C

Send Inquiry
