Send InquiryERP-200-12 MEANWELL RAINPROOF SMPS Power Supply
ERP-200-12 MEANWELL RAINPROOF SMPS Power Supply Specification
- Power Factor
- 0.95
- Application
- Rainproof SMPS Power Supply
- Rated Current
- 6.8 Amp
- Features
- Rainproof RoHS Compliant CE Certified BIS Certified
- Operating Temperature
- -30C to +70C
- Noise Level
- Low Noise
- Rated Power
- 200 Watt
- Phase
- Single Phase
- Cooling Method
- Natural Convection
- Connector Type
- Screw Terminal Connector
- Output Current
- 6.8 Amp
- Power Supply
- Switch Mode Power Supply
- Current Range
- 6.8 Amp
- Working Temperature
- -30C to +70C
- Output Type
- DC Output
- Product Type
- Power Supply Unit
- Output Power
- 200 Watt
- Output Frequency
- 50-60 Hz
- Input Voltage
- 200-240 VAC
- Voltage Protection
- Over Voltage Over Current Short Circuit Protection
- Efficiency
- High Efficiency
- Material
- Aluminum Casing
- Line Regulation
- 1%
- Storage Temperature
- -40C to +80C
- Weight
- 0.65 kg
About ERP-200-12 MEANWELL RAINPROOF SMPS Power Supply
|
Brand Name |
Meanwell |
|
Part No |
ERP-200-12 |
|
Input Voltage Range |
180 - 264VAC / 254 - 370VDC |
|
Output Voltage |
12VDC |
|
Output Adjustable Voltage Range |
10.8VDC - 13.2VDC |
|
Output Current |
16.8Amp |
|
Output Power |
200 Watt |
|
Mounting Type |
Enclosed / Panel Mount |
|
Protections |
Short Circuit / Overload / Over Voltage / Over Temperature |
|
Efficiency |
87% |
|
Certifications |
IEC/BS EN/EN 62368-1,GB4943.1-2011(except for ERP-200-12),EAC TP TC 004,IS13252(Part1) approved |
|
Dimension |
200x 120x 40mm |
|
Weight |
0.86 KG |
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in ERP-200 MEANWELL RAINPROOF SMPS Power Supply Category

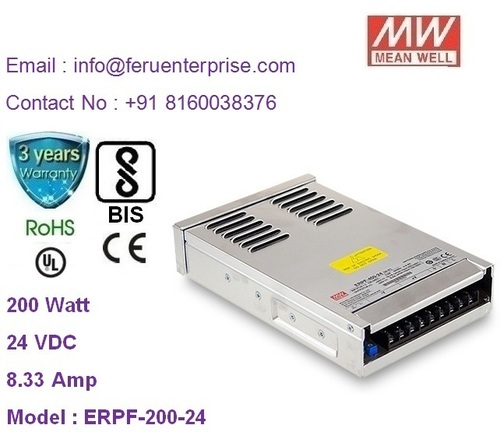

ERP-200-24 MEANWELL RAINPROOF SMPS Power Supply
Rated Current : 8.33 Amp
Weight : Approximately 1.2 kg
Operating Temperature : 20C to +50C
Features : RoHS Compliant BIS Certified
Noise Level : Low Noise
