Send Inquiry24VDC 6.5A MORNSUN SMPS Power Supply
24VDC 6.5A MORNSUN SMPS Power Supply Specification
- Phase
- Single-phase
- Output Current
- 6.5A
- Connector Type
- Screw terminals
- Power Factor
- Details not clearly provided in the image
- Rated Current
- 6.5A
- Cooling Method
- Natural air cooling
- Output Type
- DC
- Features
- RoHS compliant BIS certified CE marking
- Working Temperature
- -20C to +70C
- Power Supply
- 24VDC 6.5A MORNSUN SMPS Power Supply
- Noise Level
- Low noise
- Rated Power
- 150 Watt
- Current Range
- 6.5A
- Operating Temperature
- -20C to +70C
- Application
- Power supply for electronic devices
- Product Type
- Switched Mode Power Supply (SMPS)
- Output Power
- 150 Watt
- Output Frequency
- Details not clearly provided in the image
- Input Voltage
- AC input voltage range (details not clearly provided in the image)
- Voltage Protection
- Overvoltage protection
- Efficiency
- High efficiency
- Material
- Metal case
- Line Regulation
- Stable output under varying input
- Storage Temperature
- -40C to +85C
- Weight
- Details not clearly provided in the image
About 24VDC 6.5A MORNSUN SMPS Power Supply
|
Brand Name |
Mornsun |
|
Part No |
LM150-20B24 |
|
Input Voltage Range |
85 - 264VAC / 120 - 370VDC |
|
Output Voltage |
24VDC |
|
Output Adjustable Voltage Range |
21.6VDC - 28.8VDC |
|
Output Current |
6.5Amp |
|
Output Power |
150 Watt |
|
Mounting Type |
Enclosed / Panel Mount |
|
Protections |
Output Short Circuit / Over-Current / Over-Voltage |
|
Efficiency |
88% At 230VAC |
|
Certifications |
UL / EN / IEC / CCC / BIS / UKCA |
|
Dimension |
159 x 97 x 30 mm |
|
Weight |
0.41 KG |
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in MORNSUN SMPS Category
24VDC 25A MORNSUN SMPS Power Supply
Application : Industrial Power Supply
Product Type : Power Supply Unit
Storage Temperature : 20C to 85C
Input Voltage : 220V AC
Output Power : 600 Watt
Phase : Single Phase
24VDC 2.5A MORNSUN SMPS Power Supply
Application : Industrial Automation
Product Type : 24VDC Power Supply
Storage Temperature : 40C to +85C
Input Voltage : 100240VAC
Output Power : 60W
Phase : Single Phase
24VDC 2.2A MORNSUN SMPS Power Supply
Application : Power Supply for Industrial Applications
Product Type : SMPS (Switch Mode Power Supply)
Storage Temperature : 20C to +85C
Input Voltage : AC Input Voltage (Typically 100240V)
Output Power : 50 Watt
Phase : Single Phase

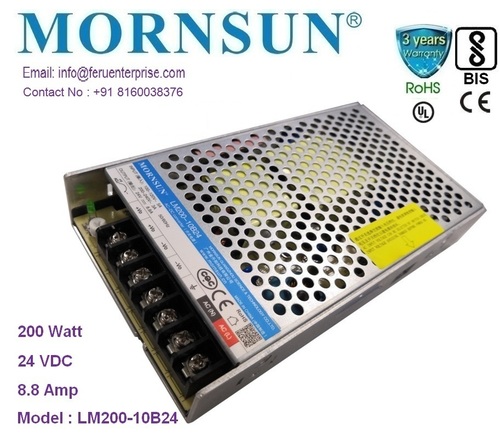

24VDC 8.8A MORNSUN SMPS Power Supply
